Overview

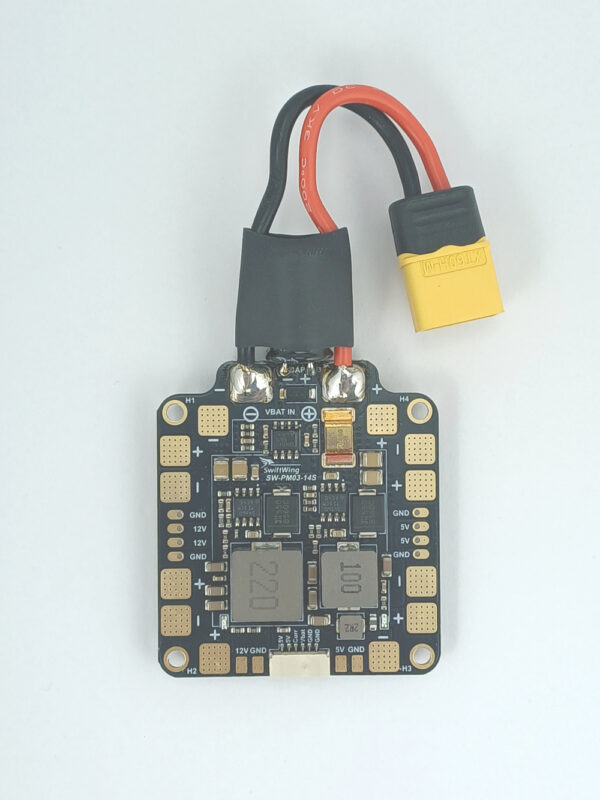

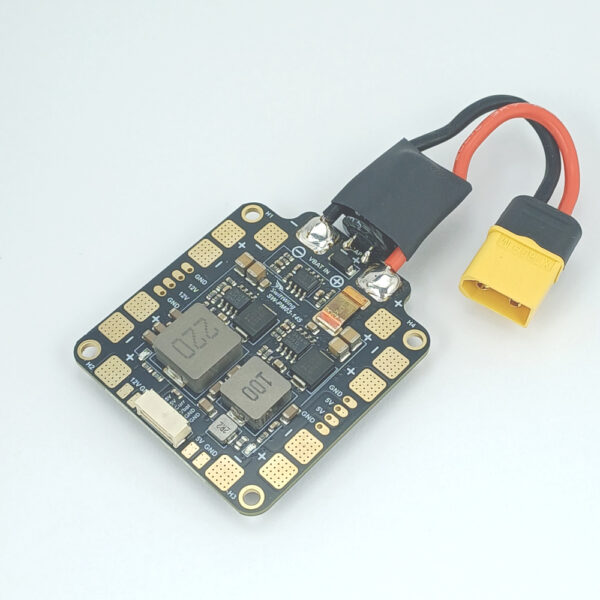

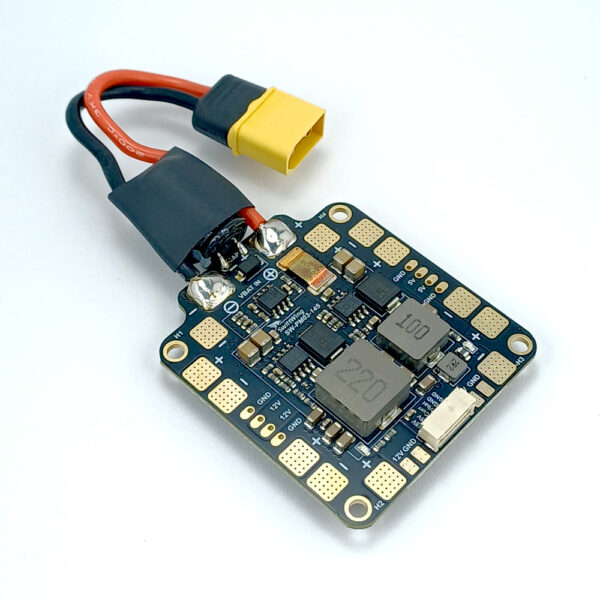

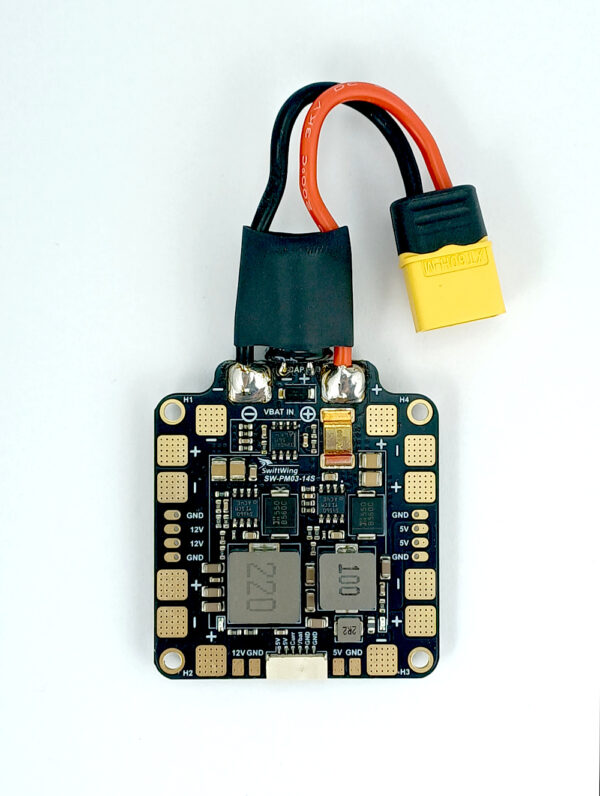

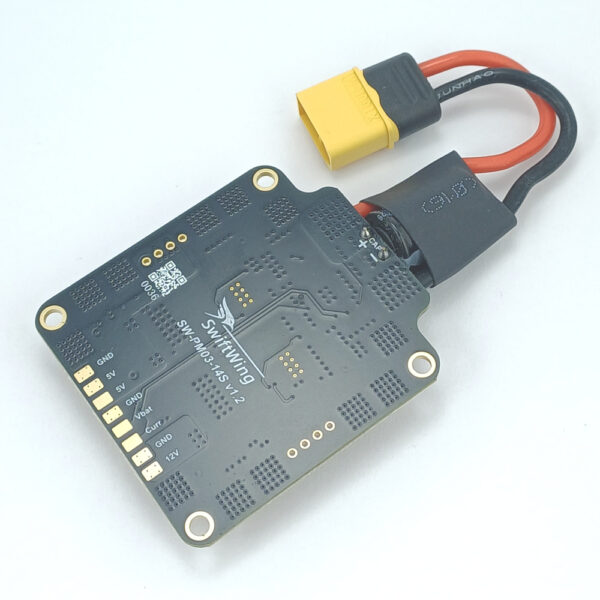

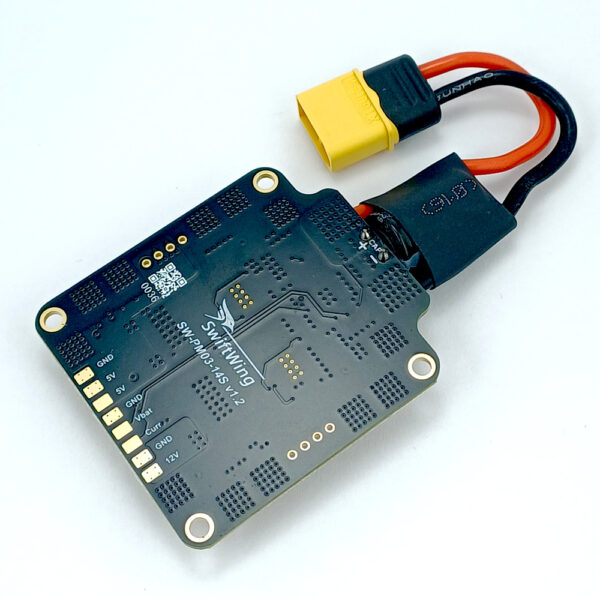

The SwiftWing PM03-14S is a professional-grade integrated Power Module and Power Distribution Board developed for ArduPilot and PX4 based UAV platforms.
Unlike conventional solutions that require a separate power distribution board and power module, the PM03-14S combines both functions into a single compact assembly. Battery power is distributed to up to six ESCs while simultaneously providing accurate battery telemetry and regulated power outputs for flight electronics.
Designed for industrial multirotors, VTOL aircraft, heavy-lift drones and robotics platforms, the PM03-14S supports battery systems from 3S to 14S LiPo (9V–60V).
Key Features
Integrated Power Module + PDB
Combines:
- High-current power distribution
- Precision current monitoring
- Battery voltage monitoring
- Flight controller power supply
into a single board.
Precision Battery Monitoring
Provides accurate battery telemetry through an industry-standard analog power module interface.
- Voltage Divider: 20.66
- Amps per Volt: 40
- Current Measurement Range: 0–120A
- Voltage Measurement Range: 0–60V
Compatible with:
- CubePilot Cube series (Cube Orange, Cube Orange+, Cube Red, etc.)
- Pixhawk 4 series
- Pixhawk 6 series
- Holybro flight controllers with analog power-module support
- CUAV flight controllers with analog power-module support
- Other ArduPilot and PX4 compatible flight controllers supporting analog voltage and current sensing
Dedicated Filtered Flight Controller Power
The PM03-14S includes a dedicated filtered 5V flight-controller rail featuring:
- Ferrite-bead filtering
- LC filtering
- Reduced conducted noise
- Improved power quality for sensitive avionics
Ideal for:
- Pixhawk
- CubePilot
- CUAV
- Holybro
flight controllers.
Integrated 5V & 12V Outputs
Provides onboard regulated outputs for powering:
5V Output
- Telemetry radios
- GPS modules
- Companion computers
- Peripherals
12V Output
- FPV systems
- Video transmitters
- Payloads
- Cameras
High Current Power Distribution
Features:
- Six ESC outputs
- 4-layer PCB construction
- 2 oz copper
- ENIG finish
- Precision shunt current sensing
Suitable for demanding UAV applications.
Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 9V–60V |
| Battery Support | 3S–14S LiPo |
| Continuous Current | 120A |
| Burst Current | 150A |
| ESC Outputs | 6 |
| Voltage Monitoring | 0–60V |
| Current Monitoring | 0–120A |
| Flight Controller Output | 5.14V |
| Auxiliary Output | 5.14V |
| Auxiliary Output | 12.2V |

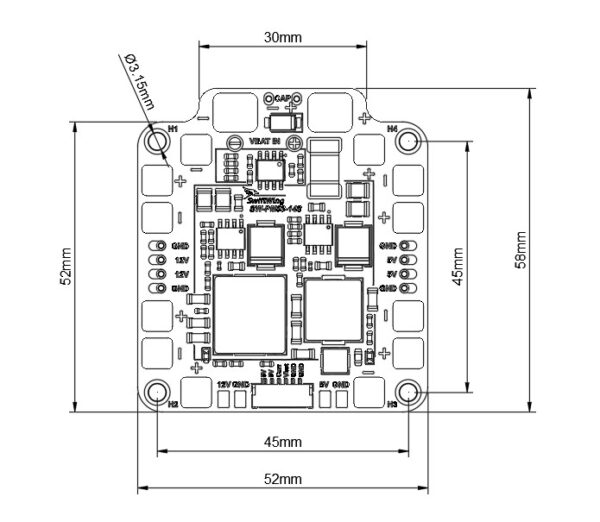

| Board Size | 58mm × 52mm |
| Mounting Pattern | 45mm × 45mm |
| PCB Layers | 4 |
| Copper Weight | 2 oz |

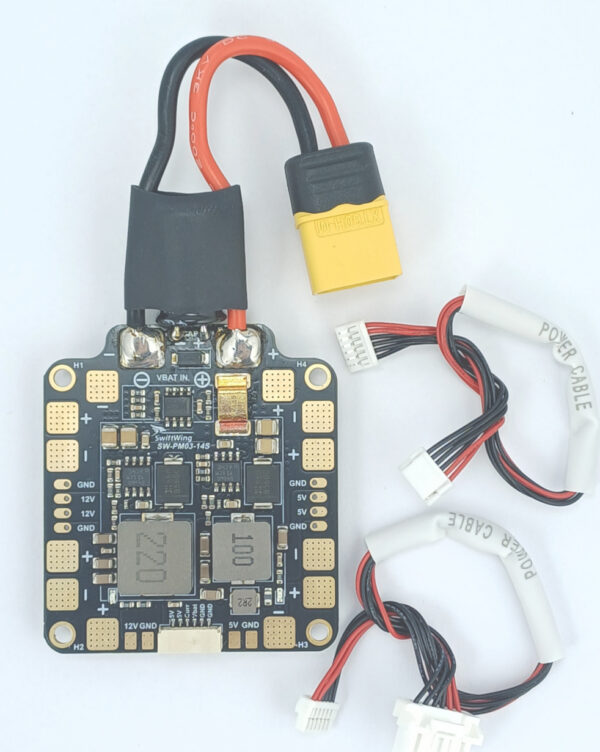

What’s Included

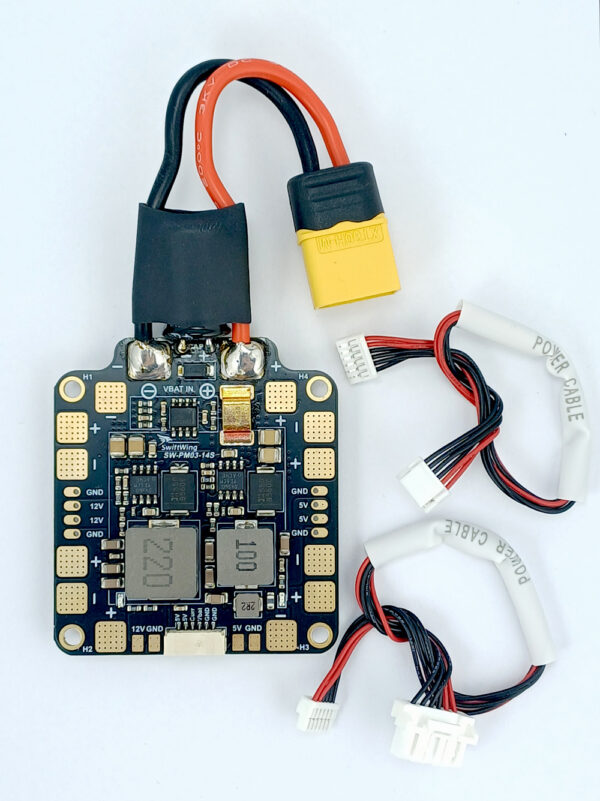

- SwiftWing PM03-14S Power Module & Power Distribution Board
- XT60 connector pre-installed
- 14 AWG silicone battery leads
- Rubycon 330µF 63V capacitor pre-installed
- JST-GH 6-pin to JST-GH 6-pin cable
- JST-GH 6-pin to Molex Click-Mate 2mm cable
Flight Controller Compatibility
Compatible with:
- ArduPilot
- PX4
- CubePilot Cube Series
- Pixhawk 4
- Pixhawk 6 Series
- CUAV Flight Controllers
- Holybro Flight Controllers
Downloads
Refer Product Datasheet (PDF) for Wiring Diagram, ArduPilot Setup, PX4 Setup
