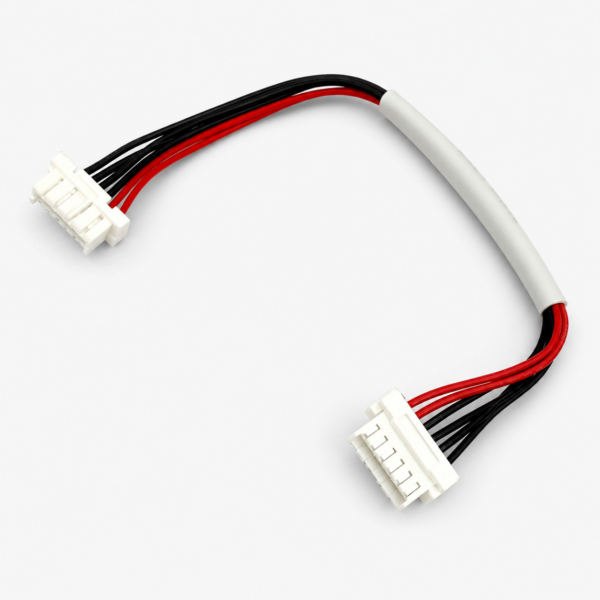

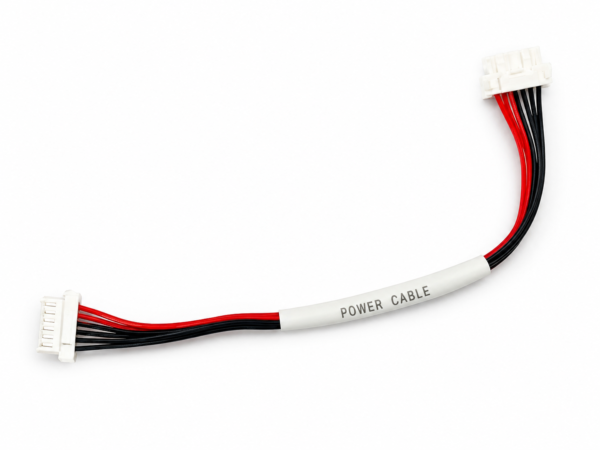

Cube Orange Power Module Cable – Molex Clik-Mate 2.0 mm 6-Pin | 150 mm | Pixhawk Compatible

Reliable Power Module Connectivity for Cube and Pixhawk Systems

The SwiftWing Cube Orange Power Module Cable is a precision-assembled wiring harness designed to connect power modules to Cube Orange, Cube Orange+, Pixhawk, and compatible flight controllers.

Manufactured using Molex Clik-Mate 2.0 mm 6-pin connectors and 24 AWG tinned copper conductors, this cable ensures reliable transfer of supply voltage, current measurement, and battery voltage monitoring signals required for accurate flight controller power management.

Each cable undergoes continuity testing, pinout verification, and crimp retention inspection before dispatch, ensuring dependable operation in mission-critical UAV applications.

---

Key Features

• Cube Orange compatible
• Cube Orange+ compatible
• Pixhawk compatible

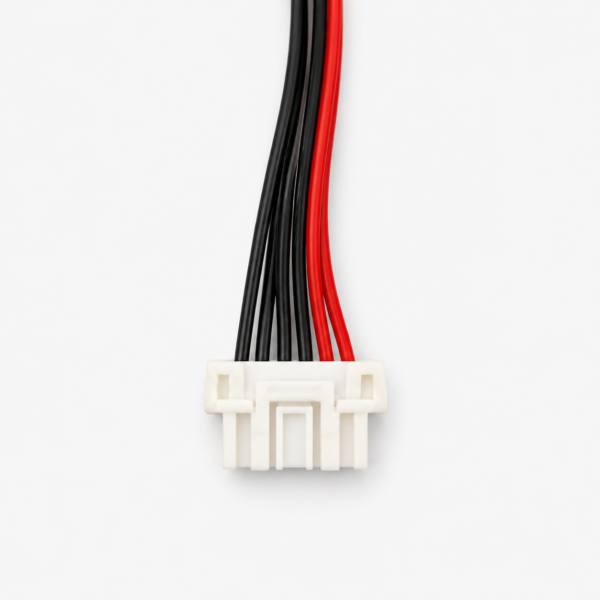

• Molex Clik-Mate 2.0 mm 6-pin connectors
• 150 mm standard length
• Pin-to-pin straight-through wiring
• Current sensing compatible
• Battery voltage sensing compatible
• 24 AWG tinned copper conductors
• Factory continuity tested
• Pinout verified
• Crimp pull-test verified
• Suitable for industrial UAV applications

---

Applications

• Cube Orange Flight Controllers
• Cube Orange+ Flight Controllers
• Pixhawk Flight Controllers
• Analog Power Modules
• Power Distribution Boards with PM Outputs
• ArduPilot Systems
• PX4 Systems
• Industrial UAV Platforms
• Research and Development UAV Projects

---

Why Use a Dedicated Power Module Cable?

Power module connections carry critical information used by the flight controller for:

• Battery voltage monitoring
• Current consumption measurement
• Remaining battery estimation
• Failsafe and low-battery protection
• Power system diagnostics

Using a correctly pinned and verified cable helps eliminate wiring errors and ensures reliable telemetry data from the power module to the flight controller.

---

Technical Specifications

---

Compatibility

This cable is designed for use with:

• Cube Orange
• Cube Orange+
• Pixhawk Flight Controllers
• SwiftWing Power Modules
• CubePilot Power Modules
• Compatible Analog Power Modules
• PX4 Compatible Flight Controllers
• ArduPilot Compatible Flight Controllers

---

Package Contents

• 1 × Cube Orange Power Module Cable (150 mm)

---

Manufacturer Information

Manufacturer: SwiftWing Robotics
Model: SW-PMC-CLM6-150
SKU: SW-PMC-CLM6-150
