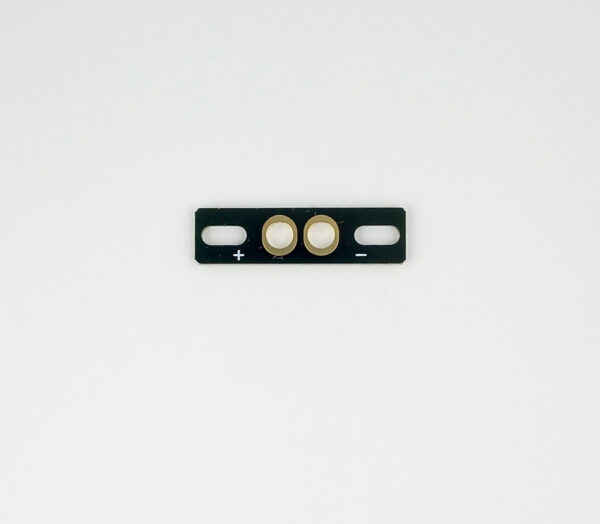

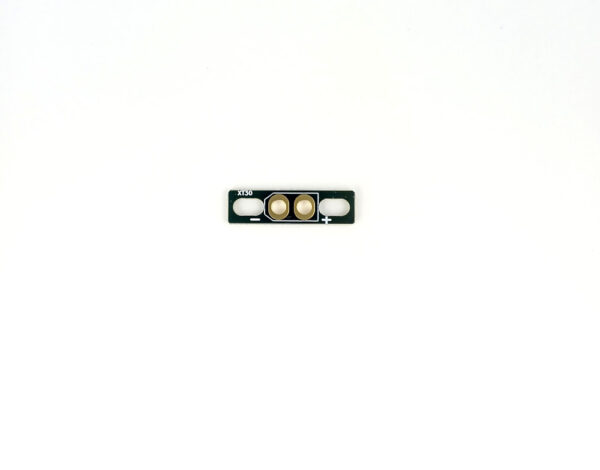

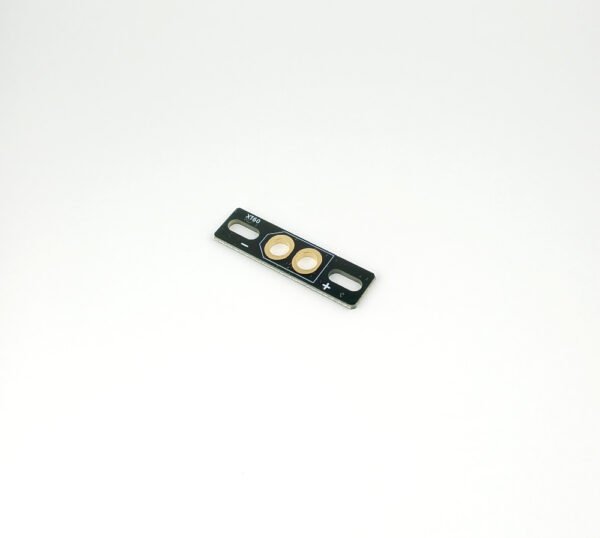

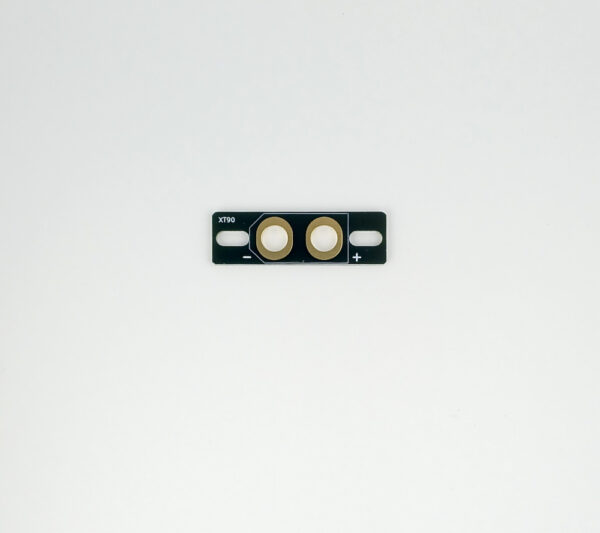

XT Connector PCB Mount Welding Board (XT30 / XT60 / XT90)

Overview

The XT Connector PCB Mount Welding Board is designed to transform standard XT connectors into a secure, mountable power interface. Instead of leaving connectors unsupported on wires, this board allows you to firmly mount them onto frames, enclosures, or panels.

This significantly improves mechanical reliability, safety, and overall system quality, especially in high-vibration or high-current environments.

---

Key Features

• Supports XT30 / XT60 / XT90 Connectors
  One product family covering low to high current applications.
• Mechanical Mounting Capability
  Dedicated screw holes for rigid installation on structures or enclosures.
• Large Copper Solder Pads
  Ensures strong solder joints and easy assembly.
• Improved Reliability
  Reduces stress on wires and prevents connector fatigue or failure.
• Clean & Professional Wiring
  Ideal for organized builds and production-ready systems.
• Heavy-Duty PCB Construction
  Thick board designed to handle mechanical and thermal stress.

---

Applications

• UAVs and FPV drones
• Battery mounting systems
• Power distribution setups
• Ground control stations (GCS)
• Robotics and automation systems
• High-current DC power systems

---

Available Variants

Choose the right connector size based on your application:

• XT30 → Compact, lightweight systems
• XT60 → Standard drone and mid-power builds
• XT90 → High-current and industrial applications

---

Why Use a PCB Mount for XT Connectors?

Traditional setups leave connectors hanging on wires, leading to:

• Mechanical stress on solder joints
• Reduced durability over time
• Poor mounting and cable management

This board solves these issues by providing a rigid, mountable interface, improving both longevity and safety.

---

Technical Overview

• PCB Type: 2-layer heavy copper
• Mounting: Through-hole M3
• Pad Type: Large copper pads for direct soldering
• Voltage Support: Up to 14S LiPo (application dependent)

---

Package Includes

• 1 × XT Connector PCB Mount Board (as per selected variant)
  (Connector not included unless specified)
