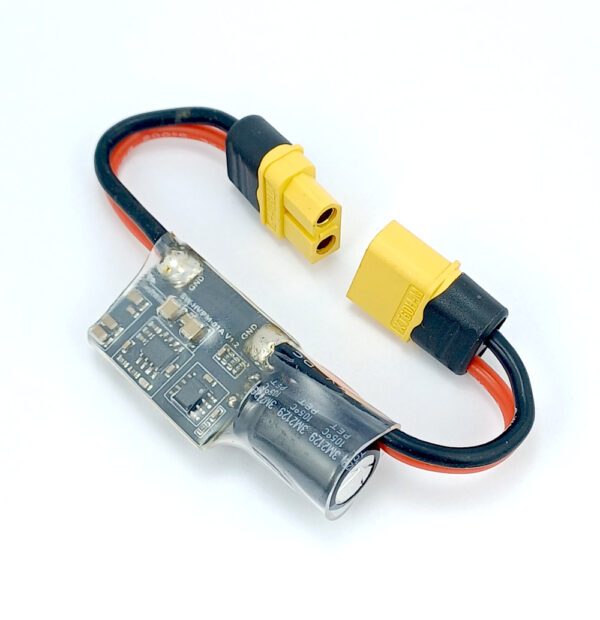

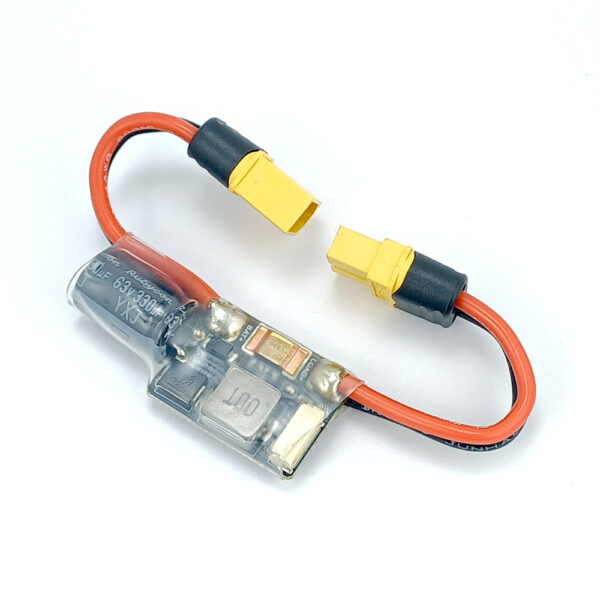

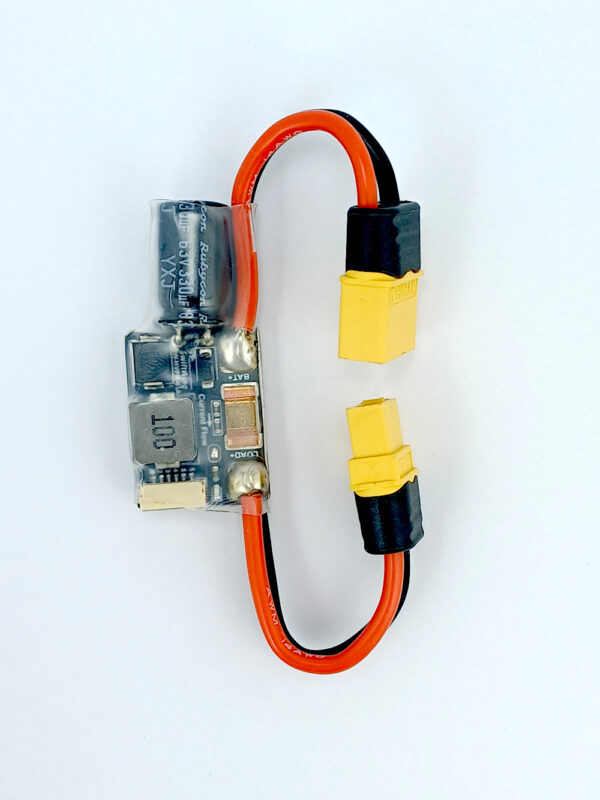

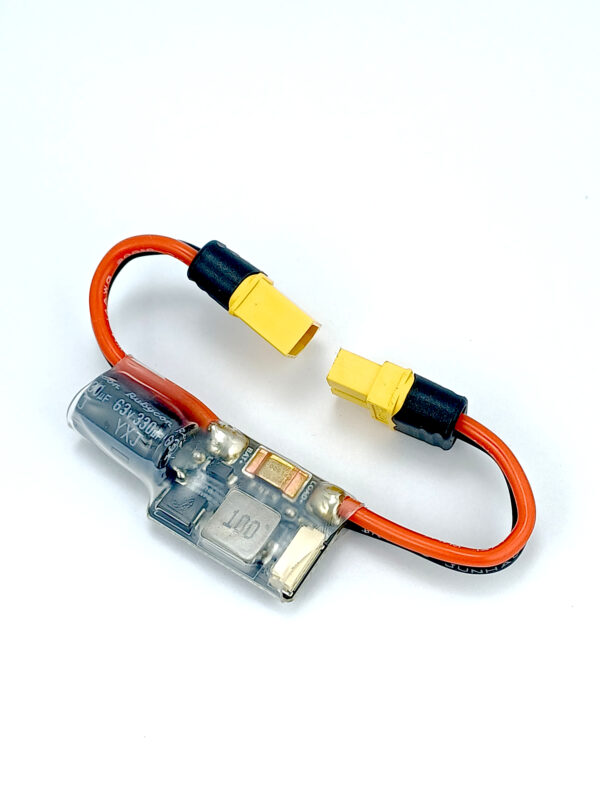

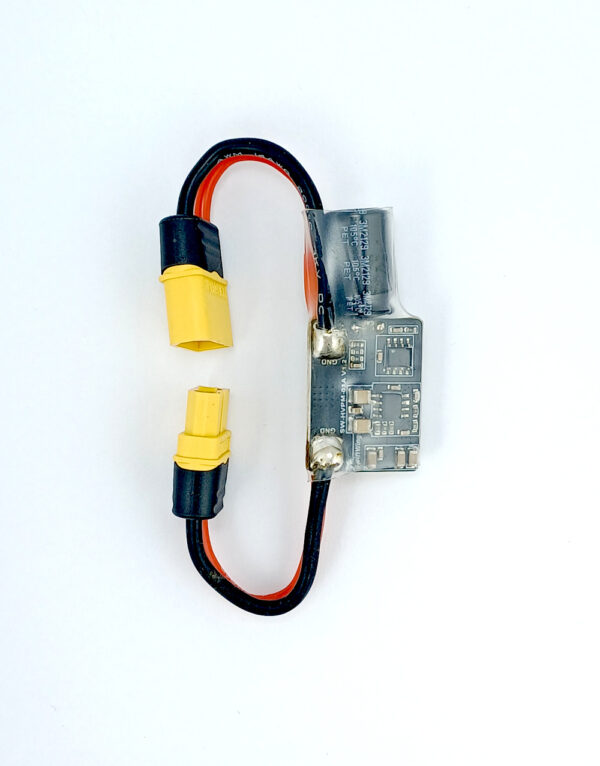

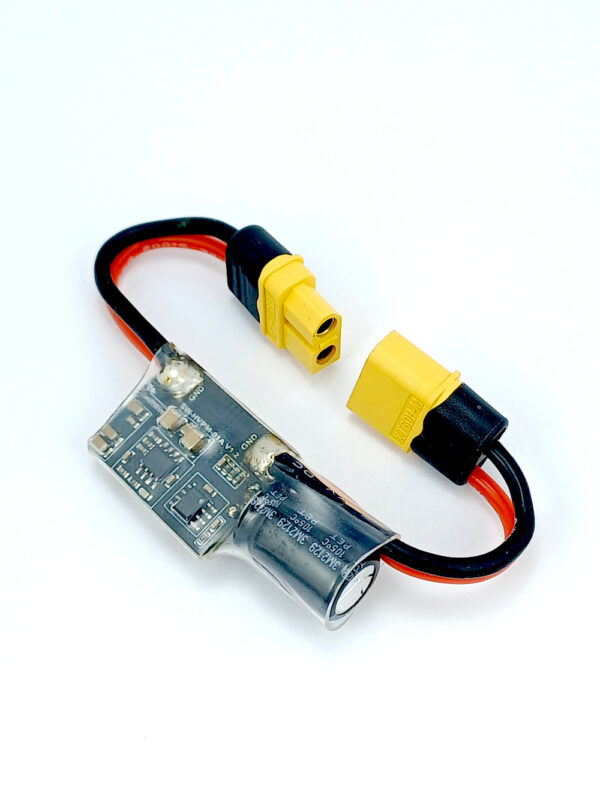

SwiftWing HVPM-01A High Voltage Analog Power Module
The SwiftWing HVPM-01A is a high-voltage analog power module designed for Pixhawk, CubePilot, ArduPilot and PX4 based UAV platforms operating from 2S to 14S battery systems. It provides stable 5.3V regulated power to the flight controller while simultaneously monitoring battery voltage and current through the industry-standard analog power module interface.
Key Features
- Supports 2S–14S LiPo battery systems (9V–60V)
- 60A continuous current capability
- 120A current measurement range
- 5.3V regulated BEC output
- 3A continuous / 5A peak BEC current
- Precision shunt-based current sensing
- Integrated Rubycon 330µF 63V low-ESR capacitor
- TVS transient protection
- XT60 male and female connectors pre-installed
- JST-GH 6-pin flight controller interface
- Compatible with ArduPilot and PX4 ecosystems
- Lightweight 29g assembled weight
Why Choose HVPM-01A?
Most standard UAV power modules are designed for 6S or lower battery systems. The HVPM-01A is specifically engineered for high-voltage UAV platforms operating up to 14S LiPo while maintaining accurate battery monitoring and reliable flight controller power delivery.
The integrated Rubycon low-ESR capacitor improves power stability, suppresses voltage spikes generated by ESC switching activity and helps maintain reliable operation during aggressive flight maneuvers.
Applications
- Multirotor UAVs
- VTOL aircraft
- Fixed-wing UAVs
- Industrial drones
- Long-endurance platforms
- Robotics systems
- Custom autopilot platforms
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 2S–14S LiPo |
| Operating Voltage | 9V–60V |
| Continuous Current | 60A |
| Current Measurement | 0–120A |
| BEC Output | 5.3V |
| BEC Current | 3A Continuous |
| Peak BEC Current | 5A |
| Voltage Divider | 20.66 |
| Current Scaling | 40 A/V |
| Weight | 29g |
| PCB Size | 30 × 22 mm |
Derived from datasheet specifications.
Flight Controller Compatibility
The HVPM-01A follows the industry-standard analog power module interface and is compatible with flight controllers supporting analog voltage and current monitoring, including:
- CubePilot Cube series (Cube Orange, Cube Orange+, Cube Red, etc.)
- Pixhawk 4 series
- Pixhawk 6 series
- Holybro flight controllers with analog power-module support
- CUAV flight controllers with analog power-module support
- Other ArduPilot and PX4 compatible flight controllers supporting analog voltage and current sensing
Package Contents

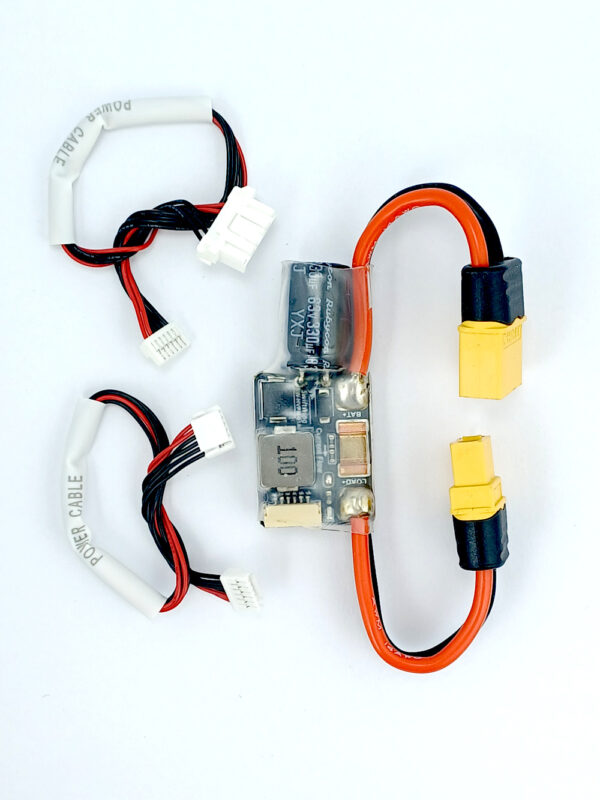

- 1 × SwiftWing HVPM-01A Power Module
- 1 × JST-GH 6-pin to JST-GH 6-pin cable
- 1 × JST-GH 6-pin to Molex Click-Mate 6-pin cable
Downloads

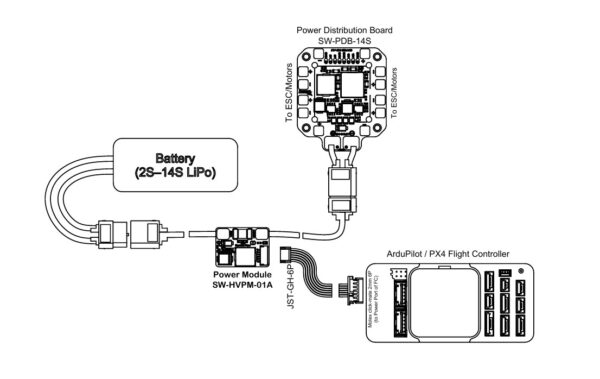

Refer Product Datasheet (PDF) for Wiring Diagram, ArduPilot Setup, PX4 Setup
